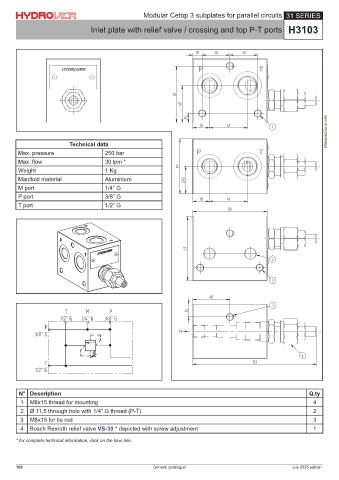

Modular Cetop 3 subplates for parallel circuits 31 SERIES

Inlet plate with relief valve / crossing and top P-T ports H3103

Dimensions in mm

Technical data
Max. pressure 250 bar
Max. flow 30 lpm *

Weight 1 Kg
Manifold material Aluminium
M port 1/4” G
P port 3/8” G
T port 1/2” G

7 0 3
* * *
3
* 0

7
*

N° Description Q.ty
1 M8x15 thread for mounting 4
2 Ø 11,5 through hole with 1/4” G thread (P-T) 2
3 M8x15 for tie rod 3
4 Bosch Rexroth relief valve VS-30 * depicted with screw adjustment 1

* for complete technical information, click on the blue link.
