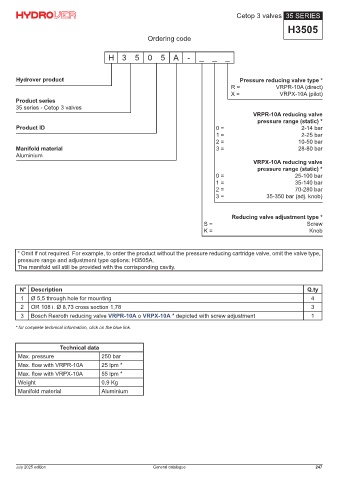

Page 247 - Hydrover-hydraulic-integrated-circuits-catalogue

Cetop 3 valves 35 SERIES

H3505
Ordering code

H 3 5 0 5 A - _ _ _

Hydrover product Pressure reducing valve type *
R = VRPR-10A (direct)
X = VRPX-10A (pilot)
Product series
35 series - Cetop 3 valves
VRPR-10A reducing valve
pressure range (static) *
Product ID 0 = 2-14 bar
1 = 2-25 bar
2 = 10-50 bar
Manifold material 3 = 28-80 bar
Aluminium
VRPX-10A reducing valve
pressure range (static) *
0 = 25-100 bar
1 = 35-140 bar
2 = 70-280 bar
3 = 35-350 bar (adj. knob)

Reducing valve adjustment type *
S = Screw
K = Knob

* Omit if not required. For example, to order the product without the pressure reducing cartridge valve, omit the valve type,
pressure range and adjustment type options: H3505A.
The manifold will still be provided with the corrisponding cavity.

N° Description Q.ty
1 Ø 5,5 through hole for mounting 4
2 OR 108 i. Ø 8,73 cross section 1,78 3
3 Bosch Rexroth reducing valve VRPR-10A o VRPX-10A * depicted with screw adjustment 1

* for complete technical information, click on the blue link.

Technical data
Max. pressure 250 bar
Max. flow with VRPR-10A 25 lpm *
Max. flow with VRPX-10A 55 lpm *
Weight 0,9 Kg
Manifold material Aluminium
