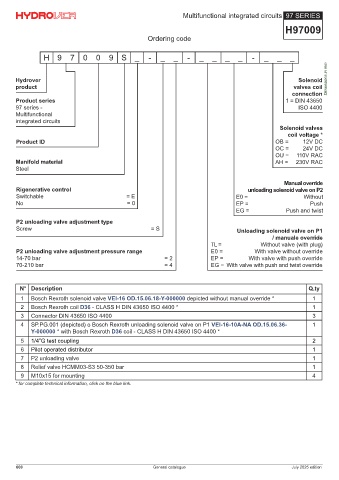

Multifunctional integrated circuits 97 SERIES

H97009
Ordering code

H 9 7 0 0 9 S _ - _ _ - _ _ _ _ - _ _ _

Hydrover Solenoid Dimensions in mm
product valves coil
connection
Product series 1 = DIN 43650
97 series - ISO 4400
Multifunctional
integrated circuits
Solenoid valves
coil voltage *
Product ID OB = 12V DC
OC = 24V DC
OU = 110V RAC
Manifold material AH = 230V RAC
Steel

Manual override
Rigenerative control unloading solenoid valve on P2
Switchable = E E0 = Without
No = 0 EP = Push
EG = Push and twist

P2 unloading valve adjustment type
Screw = S Unloading solenoid valve on P1
/ manuale override
TL = Without valve (with plug)
P2 unloading valve adjustment pressure range E0 = With valve without override
14-70 bar = 2 EP = With valve with push override
70-210 bar = 4 EG = With valve with push and twist override

N° Description Q.ty
1 Bosch Rexroth solenoid valve VEI-16 OD.15.06.18-Y-000000 depicted without manual override * 1
2 Bosch Rexroth coil D36 - CLASS H DIN 43650 ISO 4400 * 1
3 Connector DIN 43650 ISO 4400 3
4 SP.PG.001 (depicted) o Bosch Rexroth unloading solenoid valve on P1 VEI-16-10A-NA OD.15.06.36- 1
Y-000000 * with Bosch Rexroth D36 coil - CLASS H DIN 43650 ISO 4400 *
5 1/4”G test coupling 2
6 Pilot operated distributor 1
7 P2 unloading valve 1
8 Relief valve HCMM03-S3 50-350 bar 1
9 M10x15 for mounting 4
* for complete technical information, click on the blue link.
